Palletizers for pellet, granules, gravel, plastic granules, grain bag

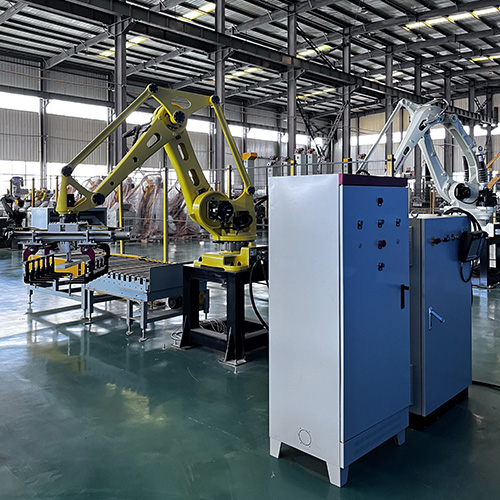

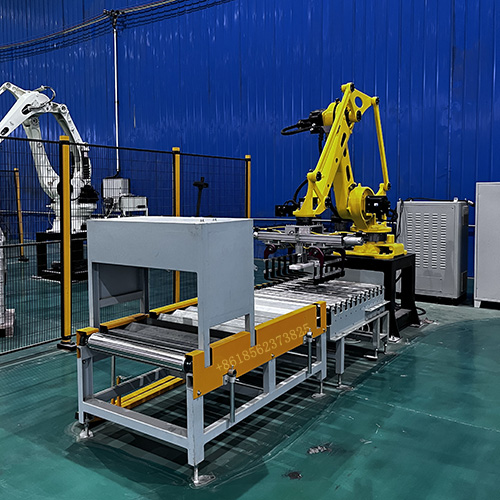

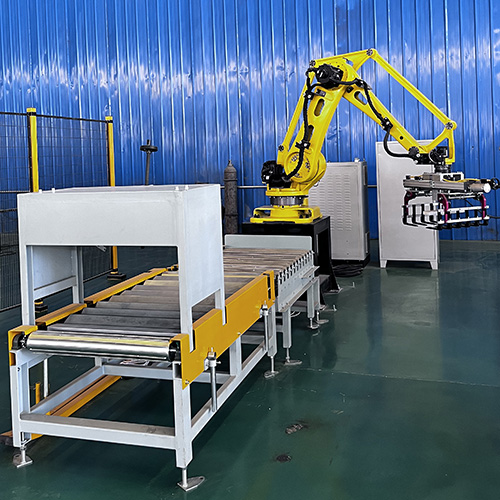

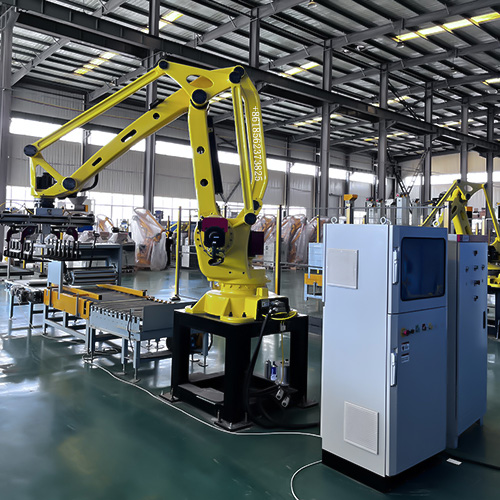

The bremetz palletizer is an automated stacking device designed for granular materials (such as feed, chemical raw materials, biomass pellets, etc.). It integrates conveying, grabbing, positioning and stacking functions to significantly improve production efficiency and palletizing quality.

1. Working principle

1. Material conveying system

The granular materials are delivered to the palletizing area through conveyor belts, bucket elevators, etc. to ensure continuous feeding.

2. Grabbing and positioning

The robotic arm or gripper device cooperates with the visual recognition system to accurately grab bagged or bulk granular materials and adjust the position through sensors.

3. Palletizing execution

The materials are stacked into a specific stack shape (such as column shape, stacked type) according to the preset program. The common height can reach more than 2.5 meters, and multi-layer stacking is supported.

4. Control system

PLC or touch screen control, real-time adjustment of palletizing speed, height and mode, support fast parameter adjustment to adapt to materials of different specifications.

2. Technical features

1. High precision and efficiency

The palletizing speed is 8-14 pieces/minute, which is significantly higher than manual efficiency.

Visual recognition and force control systems ensure neat stacking and avoid collapse.

2. Flexibility and modular design

Suitable for bagged materials of different specifications from 10 to 50 kg, supports rotation adjustment (plus or minus 90 degrees or 180 degrees), and simple programming is required to adjust the stacking shape.

3. Automation integration

Full process automation, including automatic bagging, sealing, counting, pallet supply and finished product output.

Equipped with a dust-free closed system, suitable for high-sanitation industries such as food and medicine.

III. Application areas

1. Grain and feed industry

Stacking of pellet feeds such as soybeans, wheat, rice, corn flour, and soybean meal to improve storage density and transportation stability.

2. Chemicals and building materials

Efficient stacking of materials such as fertilizers, chemical plastic pellets, and cement to reduce dust pollution.

3. New energy and biomass

Automated stacking of biomass pellet fuel (such as 25kg bags) to meet large-scale production needs.

4. Food and medicine

Nuts, melon seeds, peanut granules, pharmaceutical raw materials and other scenes with high hygiene requirements ensure that the stacking process is pollution-free.
