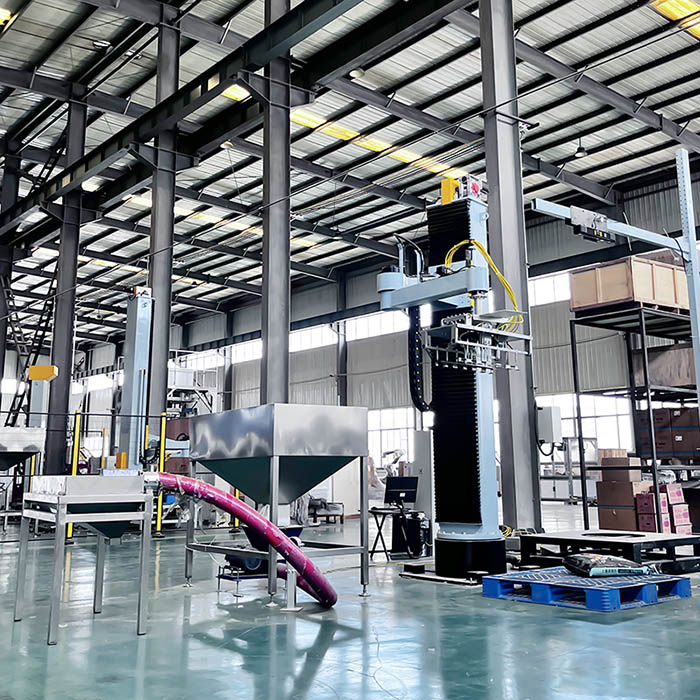

column robot unpacking & feeding depalletizer
In modern logistics and manufacturing scenarios, the efficient execution of Material Handling is inseparable from the support of automation technology. Taking Robotic Depalletizing as an example, by combining the 3D Vision Guidance system, the robot can accurately identify Pallet Pattern Detection and dynamically plan Path Planning. Even in the face of complex working conditions such as Random Bin Picking or Mixed-SKU Handling, it can stably complete the Unpacking/Unloading task. This process not only optimizes the efficiency of Packaging Handling, but also significantly reduces the need for manual intervention, becoming one of the core links of smart factories.
I. Definition and applicable scenarios of column unpacking and feeding system
Column unpacking depalletizer usually refers to unpacking equipment that uses column-type support structures (such as column-type ton bag unpacking machines) to cut or release materials after fixing ton bags. It is suitable for powdery and granular materials with poor fluidity or that require precise control in industries such as chemicals, building materials, and food.
II. Safety precautions
1. Equipment safety
The column structure needs to regularly check the welding points and bolt tightness to prevent breakage after bearing.
When unpacking, avoid scratching the outer layer of the ton bag (especially flammable material packaging) with knives to prevent static sparks.
2. Personnel protection
Operators need to wear cut-resistant gloves, goggles and dust masks to prevent material splashing or dust inhalation.
It is forbidden to put your hands under the ton bag during cutting operations.
3. Environmental management
The working area needs to be ventilated, and the dust removal system (such as pulse backflush dust collector) needs to be turned on in dusty environments.
When handling corrosive materials, the columns and contact parts need to be designed with stainless steel or anti-corrosion coatings.
III. Maintenance recommendations
1. Daily maintenance
Clean the dust from the column guide rails and transmission parts, and lubricate the chains, bearings and other moving parts.
Check whether the pressure of the pneumatic/hydraulic system is normal (such as the cylinder pressure is maintained at 0.4-0.6MPa).
2. Regular maintenance
Check the load-bearing performance of the column support structure every month and test the limit load (recommended to be 1.2 times the rated load).
Replace worn seals, knives and other consumable parts every quarter.
Through standardized operation and regular maintenance, the column unpacking equipment can significantly improve material handling efficiency while reducing safety risks. If further optimization is required, it is recommend
